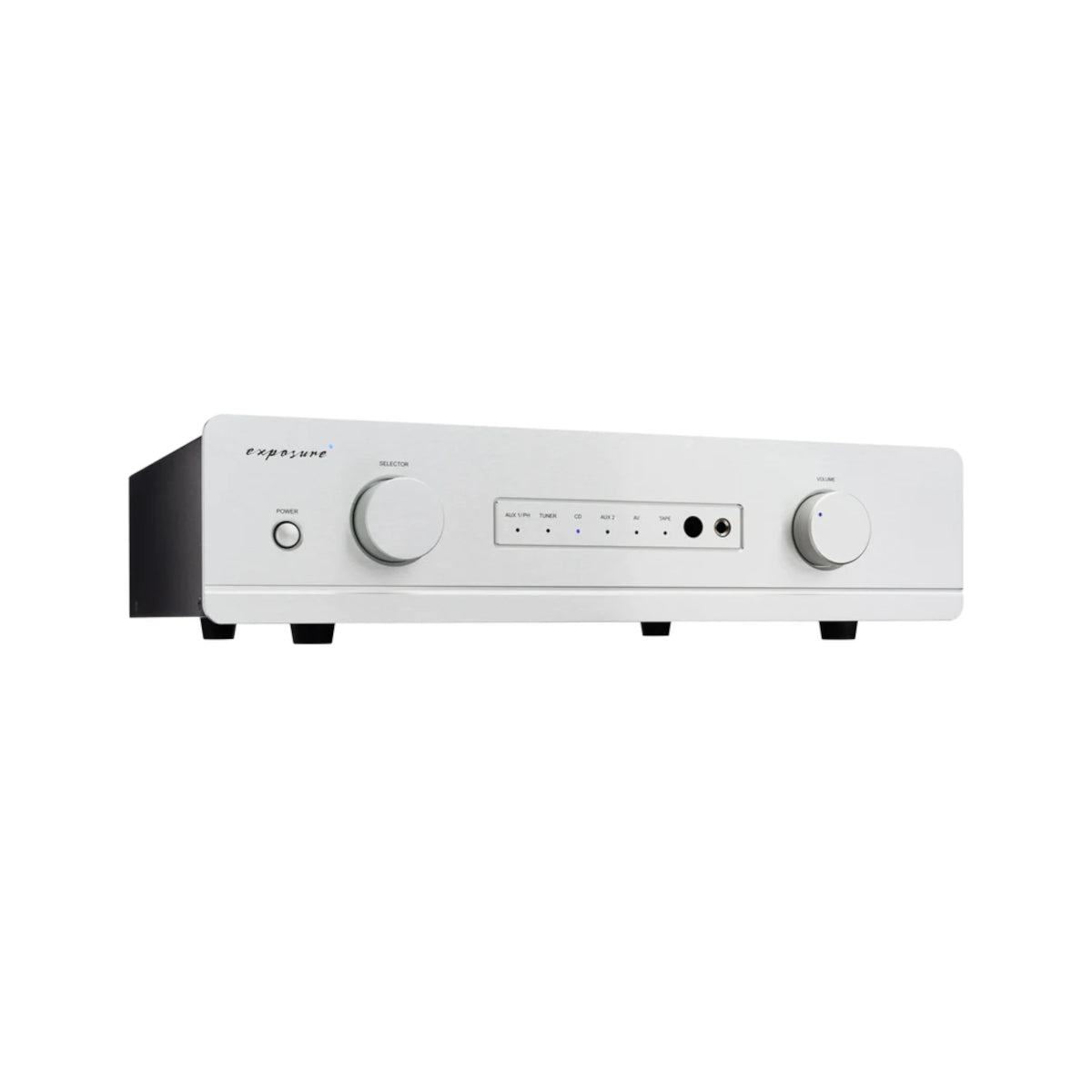

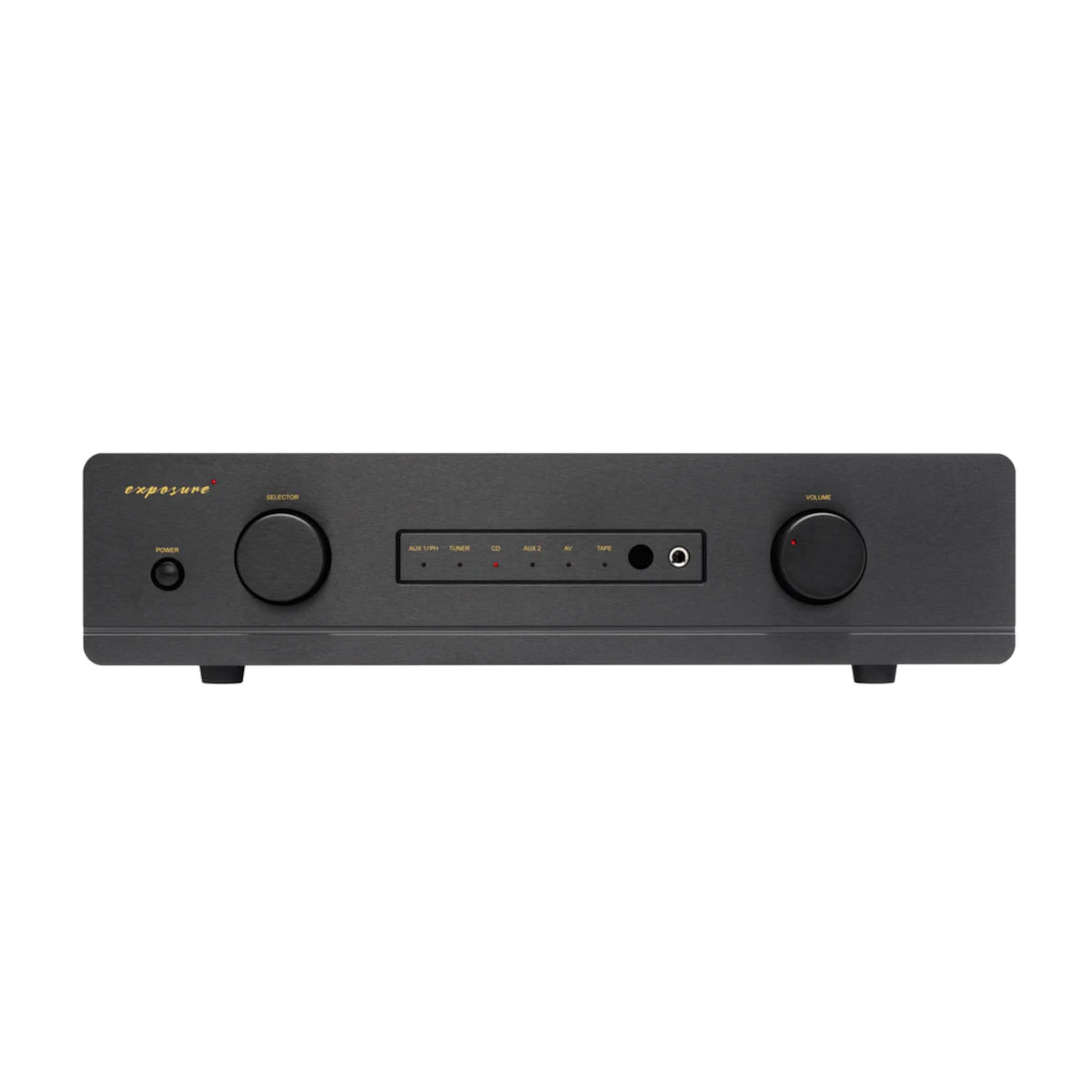

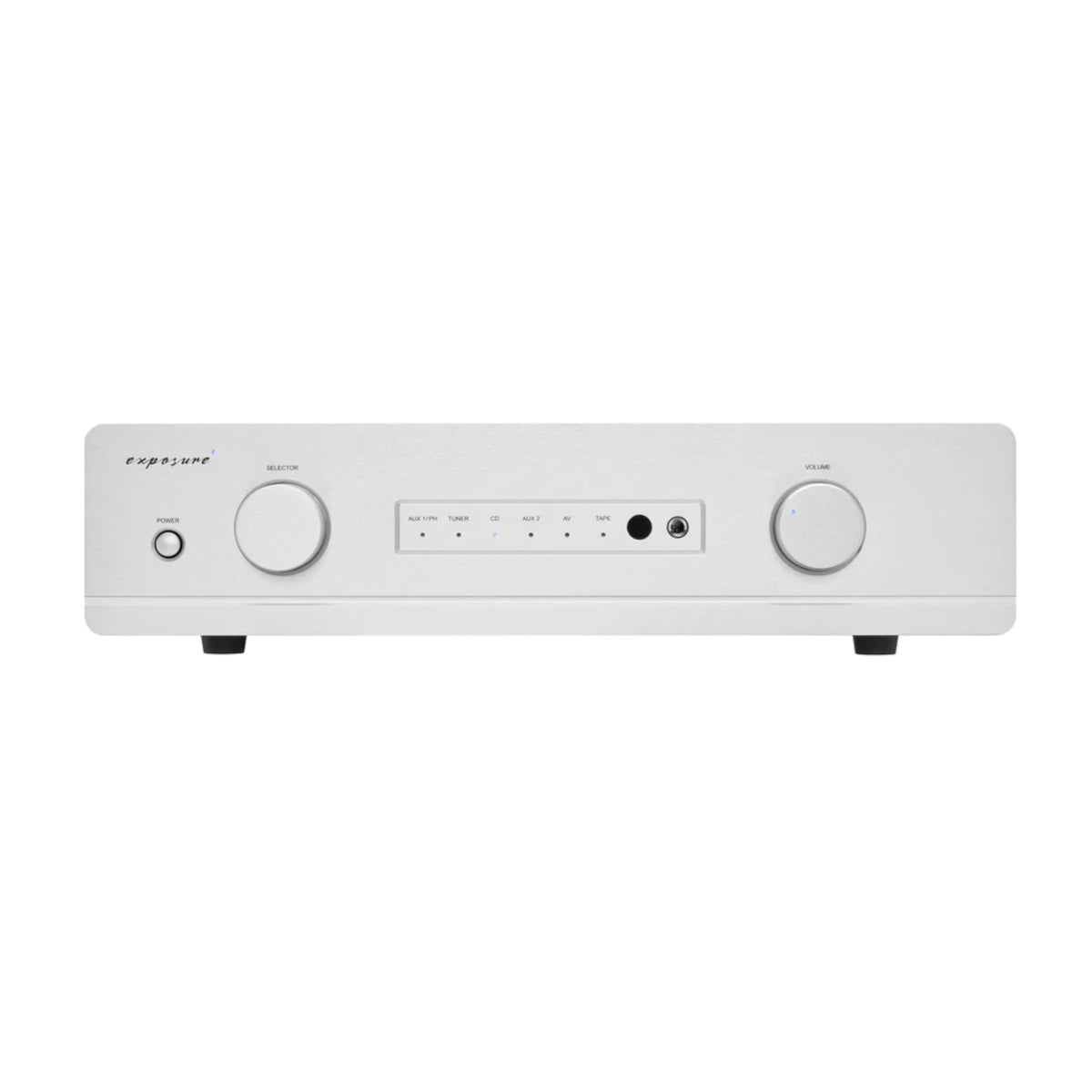

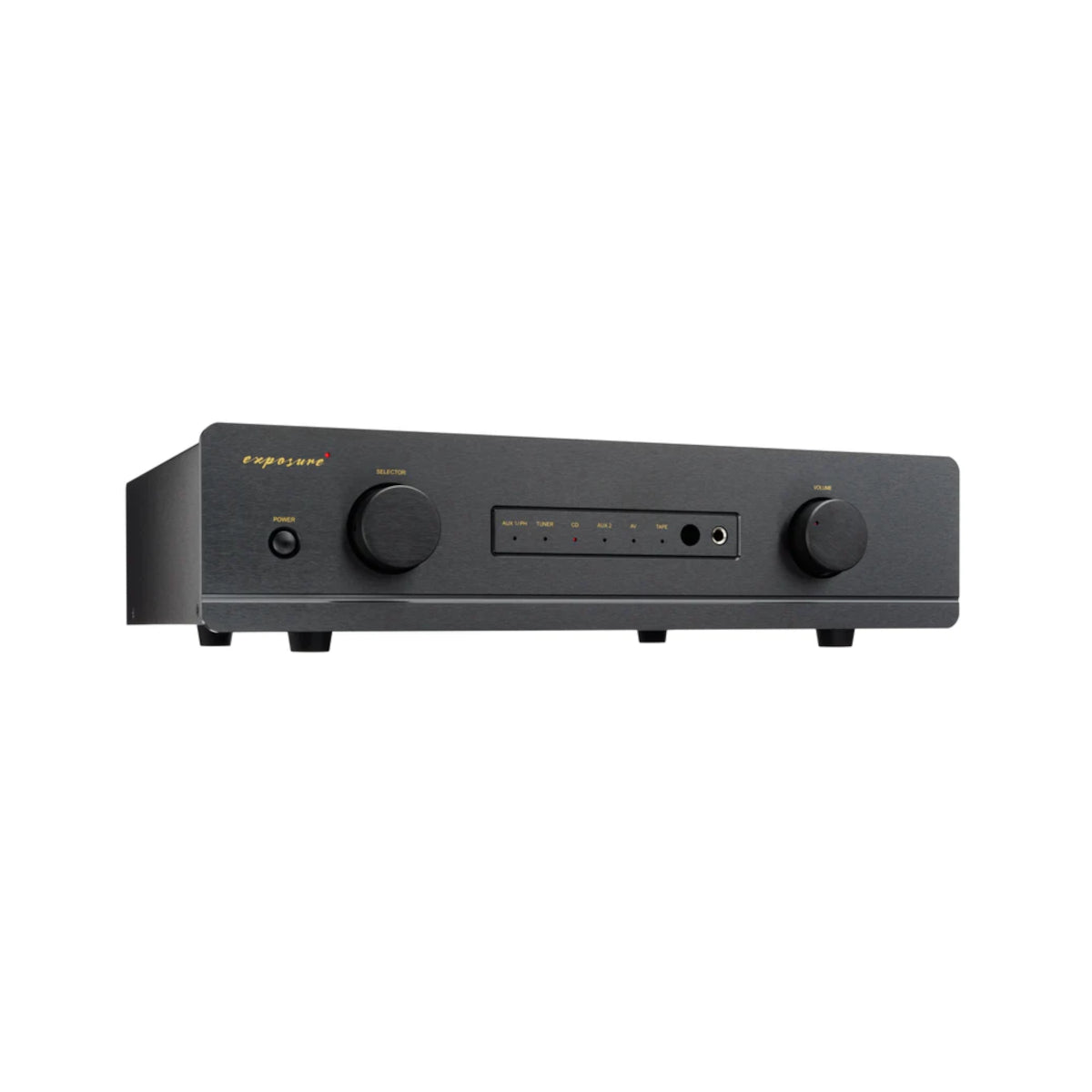

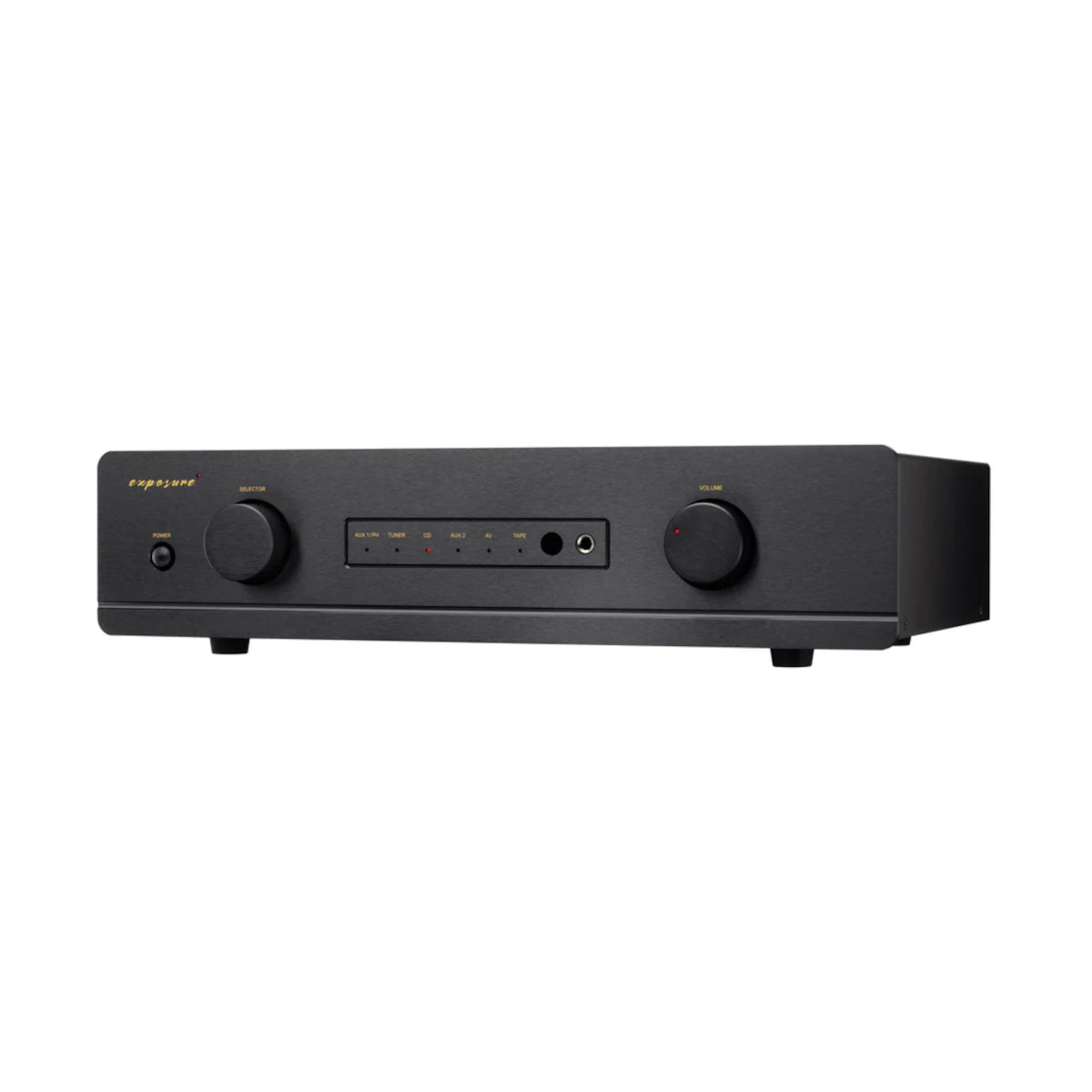

Exposure 3510 Integrated Amplifier

• 110 watts RMS per channel into 8 Ohms, 220 watts RMS per channel into 4 Ohms
• Six line inputs
• Option to fit a MC or MM phono module OR plug in DAC option
• Bi-wiring compatible
• Separate pre-amp output
• High quality capacitors used in the signal path
• Uniquely tuned short signal and power supply path PCB
• Cascode circuitry utilised for improved power supply immunity
• Fast bipolar transistor output stage for dynamic and vivid performance
• All aluminium casework and extruded front panel to control resonance and stray electro-magnetic fields
• Remote control
• Three-year guarantee
• Available in black or titanium

Outputs

• Power Output (Stereo): 110 Watts per channel at 1KHz into 8 Ohms

Pre-Amplified

• Pre-amplifier Output: 1.9V for rated input (gain + 18dB full volume)
• Maximum Output: 7.7V RMS at 1kHz
• Frequency Response : 20Hz - 20KHz ± 0.5dB
• Total Harmonic Distortion : <0.03% at rated output, ref. 1KHz
• Signal to Noise Ratio: >100dB, ref. rated output
• Channel Separation: >60dB, 20Hz - 20KHz

Headphone

• Output Impedance: <12 Ohms at 1kHz
• Maximum Level into 33 Ohms at 1kHz & 0.05% THD: 4.8V RMS, (700mW)
• Total Harmonic Distortion at 2V Output 1kHz: <0.02%, (120mW)
• Maximum Level into 330 Ohms at 1kHz & 0.02% THD: 7V RMS (150mW)
• Total Harmonic Distortion at 2V Output 1kHz: <0.015%, (12mW)

Inputs (Line)

• Input Impedance: 17K Ohms minimum (line input)
  Input Sensitivity: 250mV

General

• Mains Supply: 220/240V, 50/60Hz (factory set)
• Power Consumption: 400W, 8 Ohms load, both channels driven
• Dimensions - H x W x D: 115mm x 440mm x 300mm
• Nett Weight (unpacked): 12kg
• Gross Weight (packed): 14kg

Exposure 3510 integrated amplifier
